SetErrorMode(2)
#constant acceleration#=.05 //used to calclate the carSpeed#
#constant maxCarSpeed#=20.0 //The Maximum speed the carBlock will move
#constant minCarSpeed#=0.0   //The Minimum speed the carBlock will move
#constant AccelerationFactor#=.25 //the speed your car accelerates at
#constant DecelerationFactor#=.05 //the braking factor
#constant KEY_LEFT         37
#constant KEY_UP           38
#constant KEY_RIGHT        39
#constant KEY_DOWN         40
screenWidth As Float
screenHeight As Float
screenAspect As Float

screenWidth = GetDeviceWidth()
screenHeight = GetDeviceHeight()

// set window properties
SetWindowTitle("Vehicle physics with playercontrollers")
SetOrientationAllowed(0, 0, 1, 1) // allow both portrait and landscape on mobile devices
SetWindowSize(screenWidth, screenHeight, 0, 0)
SetWindowAllowResize(1) // allow the user to resize the window

// set display properties
SetVirtualResolution(screenWidth, screenHeight) // doesn't have to match the window
SetSyncRate(25, 0) // 30fps instead of 60 to save battery
SetScissor(0, 0, 0, 0) // use the maximum available screen space, no black borders
UseNewDefaultFonts(1)

create3DPhysicsWorld()
box=CreateObjectSphere(2, 16, 16)
SetObjectColor(box,200,200,200,255)
SetObjectPosition(box,0,2,0)
//RotateObjectLocalz(box,90)
//SetCameraPosition(1, 0, 0, -3)
///SetCameraLookAt(1, 0, 0, 0, 0)
createCharacterController(box)

ground=CreateObjectPlane(200,200)
SetObjectImage(ground,CreateGrid(screenWidth,screenHeight), 0)
RotateObjectLocalX(ground,90)
Create3DPhysicsStaticBody(ground)

ramp=CreateObjectPlane(10,40)
SetObjectColor(ramp,200,0,0,255)
SetObjectPosition(ramp,0,-.025,10)
RotateObjectLocalX(ramp,65)
Create3DPhysicsStaticBody(ramp)


global velocity as float

do
		print (velocity)
		updatePlayerMovement(box)
		SetCameraPosition(1,GetObjectWorldX(box),GetObjectWorldY(box)+5,GetObjectWorldZ(box)-5)
        Sync()
loop

function createCharacterController(objID as integer)
	//This vector is the offset of the model center from origin.
    //For example a model 72 units tall standing at origin is 36 units offset on the y axis.
    //This allows for models of different sizes.
     characterOffsetVec = CreateVector3( 0.0, 0.0, 0.50 )
    //This vector indicates the axis your model faces forward.
    //For example if your model faces down the - Z axis use this vector.
    objectOrientationVec = CreateVector3( 0.0, 0.0, 0.0 )
    //The crouchScale parameter is 0.0 to 1.0, for examle 0.75 is 75% of the models standing height.
    Create3DPhysicsCharacterController( objID, 1, characterOffsetVec, objectOrientationVec, 0.90 )
    DeleteVector3( characterOffsetVec )
    DeleteVector3( objectOrientationVec )
endfunction

function updatePlayerMovement(player as integer)

    if GetRawKeyState(KEY_LEFT)  //strafe left
   		Rotate3DPhysicsCharacterController(player,GetObjectAngleY(player)-2)
    endif
    if GetRawKeyState(KEY_RIGHT)  //strafe right
   		Rotate3DPhysicsCharacterController(player,GetObjectAngleY(player)+2)
    endif

    if GetRawKeyState(KEY_UP) //move forward
		//velocity=velocity+1.0
		velocity=velocity+((maxCarSpeed#-velocity)*AccelerationFactor#)
        if velocity>maxCarSpeed# then velocity=maxCarSpeed#
	 else
		velocity=velocity-((maxCarSpeed#-velocity)*DecelerationFactor#+0.1)
        if velocity<minCarSpeed# then velocity=minCarSpeed#
	 endif

     Move3DPhysicsCharacterController(player,1,velocity)
    Step3DPhysicsWorld() //needs to be called prior to below and any camera adjustments
endfunction

function	CreateGrid(screenWidth,screenHeight)

	SetClearColor(0x70, 0x70, 0x70)
	ClearScreen()
	size = screenWidth/ 32
    green=MakeColor(0,200,0)
	DrawBox(0, 0, screenWidth, screenHeight, green,green,green,green, 1)

	for i=0 to screenWidth step size
		DrawLine(i, 0, i, screenHeight, 200,0,0)
	next

	for i=screenHeight to 0 step -size
		DrawLine(0, i, screenWidth, i, 200,0,0)
	next

	render()

	img = GetImage(0, 0, screenWidth, screenHeight)
	ClearScreen()
endfunction img

SetWindowSize( 1024, 768, 0 )
SetVirtualResolution( 1024, 768 )

LoadImage(1,"mytexture.png")

createShader()
CreateSprite(1,1)
SetSpriteSize(1,1024,768)
LoadSpriteShader(1, "shader.ps")
SetSpriteShader( 1,1 )

SetShaderConstantByName(1,"resolution",1024,768,0.0,0.0)

resetTimer()
do
	time#=Timer()
	SetShaderConstantByName(1,"time",time#,0.0,0.0,0.0)
	sync()

loop

function createShader()

file = OpenToWrite("shader.ps")
WriteLine(file,"#ifdef GL_ES")
WriteLine(file,"precision mediump float;")
WriteLine(file,"#endif")
WriteLine(file,"#extension GL_OES_standard_derivatives : enable")
WriteLine(file,"uniform sampler2D texture0;")
WriteLine(file,"varying mediump vec2 uvVarying;")
WriteLine(file,"uniform float time;")
WriteLine(file,"uniform vec2 resolution;")
WriteLine(file,"// function to return a random number")
WriteLine(file,"float random (vec2 p) {")
WriteLine(file,"		p = fract(p*vec2(123.45, 678.91));")
WriteLine(file,"    p += dot(p, p+23.45);")
WriteLine(file,"    return fract (p.x * p.y);")
WriteLine(file,"}")
WriteLine(file,"void main( void )")
WriteLine(file,"{")
WriteLine(file,"		vec2 uv = (gl_FragCoord.xy-.5*resolution.xy)/resolution.y;")
WriteLine(file,"    vec3 pattern = vec3(0);")
WriteLine(file,"    float units = 30.;")
WriteLine(file,"    vec2 gv = fract(uv * units) - .5;")
WriteLine(file,"    vec2 id = floor(uv * units) + .5; // add .5 here to center")
WriteLine(file,"    float d = length(gv);")
WriteLine(file,"    float minRadius = .2;")
WriteLine(file,"    float maxRadius = .5;")
WriteLine(file,"    float speed = 10.2;")
WriteLine(file,"    float pulseAmount = 1.;")
WriteLine(file,"    float radius = mix(")
WriteLine(file,"        minRadius, ")
WriteLine(file,"        maxRadius,")
WriteLine(file,"        //sin(random(id) * time * speed) * .5 + .5);")
WriteLine(file,"        sin(length(pulseAmount*gv - id) - time * speed)*.5+.5); // how to offset sine based on id")
WriteLine(file,"    float m = smoothstep(radius, radius*.9,d);")
WriteLine(file,"    pattern += m;")
WriteLine(file,"    vec3 colorA = vec3(random(id));")
WriteLine(file,"		vec3 colorB = texture2D(texture0, uvVarying).rgb;")
WriteLine(file,"		vec3 finalColor = colorB*colorA;")
WriteLine(file," 	finalColor=clamp(finalColor,0.0,1.0);")
WriteLine(file,"    gl_FragColor = vec4(finalColor * pattern,1.);")
WriteLine(file,"}")
CloseFile(file)
endfunction

attribute highp vec3 position;
attribute mediump vec3 normal;
attribute mediump vec2 uv;
varying highp vec3 posVarying;
varying mediump vec3 normalVarying;
varying mediump vec2 uvVarying;
varying mediump vec3 lightVarying;
uniform highp mat3 agk_WorldNormal;
uniform highp mat4 agk_World;
uniform highp mat4 agk_ViewProj;
uniform mediump vec4 uvBounds0;
mediump vec3 GetVSLighting( mediump vec3 normal, highp vec3 pos );
void main()
{
    uvVarying = uv * uvBounds0.xy + uvBounds0.zw;
    highp vec4 pos = agk_World * vec4(position,1.0);
    gl_Position = agk_ViewProj * pos;
    mediump vec3 norm = normalize(agk_WorldNormal * normal);
    posVarying = pos.xyz;
    normalVarying = norm;
    lightVarying = GetVSLighting( norm, posVarying );
}

uniform sampler2D texture0;
varying highp vec3 posVarying;
varying mediump vec3 normalVarying;
varying mediump vec2 uvVarying;
varying mediump vec3 lightVarying;
mediump vec3 GetPSLighting( mediump vec3 normal, highp vec3 pos );
mediump vec3 ApplyFog( mediump vec3 color, highp vec3 pointPos );
uniform mediump vec3 agk_MeshDiffuse;
uniform mediump vec3 myCoord;
uniform vec3 lowp alpha;
varying vec4 verpos;
void main()
{
mediump vec3 norm = normalize(normalVarying);
mediump vec3 light = lightVarying + GetPSLighting( norm, posVarying );
vec3 colorA = texture2D(texture0, uvVarying).rgb*light *agk_MeshDiffuse;
if (posVarying.y>myCoord.y)
{
    colorA = clamp(colorA,0.0,1.0);
	mediump vec3 color = ApplyFog( colorA, posVarying );
	gl_FragColor = vec4(color,alpha.r);
}else{
	if (posVarying.y<myCoord.x)
	{
		mediump vec3 color = ApplyFog( colorA, posVarying );
		gl_FragColor = vec4(color,alpha.r);
	}else{
		mediump vec3 color = ApplyFog( colorA, posVarying );
		gl_FragColor = vec4(color,1.0);
	}
}
}

SetObjectColor(models[num].ID,255,255,255,255)
SetObjectTransparency(models[num].ID,1)
SetObjectDepthWrite(models[num].ID,1)
SetObjectShader(models[num].ID, fadeShader)

SetShaderConstantByName(fadeShader,"alpha",0.2,0,0,0)
do
	SetShaderConstantByName(fadeShader,"myCoord",getObjectY(player.ID)-5,(getObjectY(player.ID)+12),1,1)
        rem sets 5 below or less of the players position transparent and 12 above the players position
	sync()
loop

#object red green blue image
tree.3ds 0 200 0 tree.png
rockwall.3ds 100 100 100 rockwall.png
grass1.3ds 0 100 0 grass1.png

// Project: imgFileLoader
// Created: 2019-09-04

// show all errors
SetErrorMode(2)

#constant screenwidth=1024
#constant screenheight=768
#constant fullscreen=0
#constant screenrate=0

// set window properties
SetWindowTitle( "image loader" )
SetWindowSize( screenwidth, screenheight, fullscreen )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( screenwidth, screenheight ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( screenrate, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

#constant tileWidth 16
#constant tileDepth 16
#constant tileHeight 16

type _object
	objID as integer
	imgID as integer
endtype

global objects as _object[]

type _map
	objName as String
	r as integer
	g as integer
	b as integer
	imgName as String
	imgID as integer
endtype

maps as _map[]
loadmap("test.map",maps)
img1=loadImage("layer1.png")
img2=loadImage("layer2.png")
grabinfo(img1,0,maps,objects)
grabinfo(img2,1,maps,objects)

camerax#=100
cameray#=100
cameraz#=-190

do
    if GetRawKeyState(38) then inc cameraz#
    if GetRawKeyState(40) then dec cameraz#
    if GetRawKeyState(37) then inc camerax#
    if GetRawKeyState(39) then dec camerax#


    if GetRawKeyState(87) then inc cameray#
    if GetRawKeyState(83) then dec cameray#



    print(GetRawLastKey())


    SetCameraPosition(1,camerax#,cameray#,cameraz#)

    Print( ScreenFPS() )
    Sync()
loop

function grabinfo(img,layer as integer,maps as _map[],objects ref as _object[])
    imgmemblock = CreateMemblockFromImage(img)

    width = GetMemblockInt(imgmemblock,0)
    height = GetMemblockInt(imgmemblock,4)
    objnumber=0
    myObject as _object
    for x=width-1 to 0 step -1
		for y=height-1 to 0 step -1
            offset = (12+((y * width) + x) * 4) - 4
            r=GetMemblockByte(imgmemblock,offset)
            g=GetMemblockByte(imgmemblock,offset+1)
            b=GetMemblockByte(imgmemblock,offset+2)
            a=GetMemblockByte(imgmemblock,offset+3)
			color=r+g+b+a
			for check=maps.length to 0 step-1
				if r=maps[check].r and g=maps[check].g and b=maps[check].b
					myObject.objID=LoadObject(maps[check].objName)
					myObject.imgID=maps[check].imgID
					objects.insert(myObject)
					SetObjectPosition(objects[objnumber].objID,x*tileWidth,layer*tileHeight, -y*tileDepth  )
					SetObjectImage(objects[objnumber].objID,objects[objnumber].imgID,0)
					inc objnumber
				endif
            next check
        next
    next
endfunction

function loadMap(filename as string,maps ref as _map[])
file = OpenToRead(filename)
myMap as _map
line		as string
do
	line = ReadLine(file)
	if FileEOF(file) = 1
		exit
	endif
	if mid(line, 1, 1) = "#"
		continue
	endif

	myMap.objName = GetStringToken2( line, " ", 1 )
	myMap.r = val(GetStringToken2( line, " ", 2 ))
	myMap.g = val(GetStringToken2( line, " ", 3 ))
	myMap.b = val(GetStringToken2( line, " ", 4 ))
	myMap.imgName = GetStringToken2( line, " ", 5 )
	a=imageExists(myMap.imgName,maps)
	if a>0
		myMap.imgID=a
	else
		myMap.imgID=LoadImage(myMap.imgName)
	endif
	maps.insert(myMap)
loop
CloseFile(file)
endfunction

function imageExists(imgName as string,maps as _map[])
	val=0
	for check=maps.length to 0 step -1
		if imgName=maps[check].imgName
			exitfunction maps[check].imgID
		endif
	next Check
endfunction val

SetWindowSize( 1024, 768, 0 )
SetVirtualResolution( 1024, 768 )
#constant Shader =1


createShader()
LoadShader(Shader,"melt.vs", "melt.ps")
b=CreateObjectBox(5,5,5)
setObjectImage(b,CreateTexture(),0)
//b=LoadObjectWithChildren("zombie.fbx")

//SetObjectImage(b,loadImage("zombie.png"),0)
//RotateObjectLocaly(b,180)
//FixObjectPivot(b)
//SetObjectAnimationSpeed(b, 30)
//PlayObjectAnimation(b, GetObjectAnimationName(b, 1), 1, -1, 1, 0)
SetObjectShader(b,Shader)


x#=.1:y#=.1:z#=.1

do

    SetShaderConstantByName(Shader,"scalevalue",x#,y#,z#,1)
	dec y#,.0001
	if GetRawKeyState(32) then RotateObjectLocalY(b,1)
	print(ScreenFPS())
	sync()

loop


function createShader()
file = OpenToWrite("melt.vs")

WriteLine(file,"attribute highp vec3 position;")
WriteLine(file,"attribute mediump vec3 normal;")
WriteLine(file,"attribute mediump vec2 uv;")

WriteLine(file,"varying highp vec3 posVarying;")
WriteLine(file,"varying mediump vec3 normalVarying;")
WriteLine(file,"varying mediump vec2 uvVarying;")
WriteLine(file,"varying mediump vec3 lightVarying;")

WriteLine(file,"uniform highp mat3 agk_WorldNormal;")
WriteLine(file,"uniform highp mat4 agk_World;")
WriteLine(file,"uniform highp mat4 agk_ViewProj;")

//WriteLine(file,"uniform highp mat4 agk_View;")
//WriteLine(file,"uniform highp mat4 agk_Proj;")
//WriteLine(file,"uniform highp mat4 modelMat;")


WriteLine(file,"uniform mediump vec4 uvBounds0;")

WriteLine(file,"mediump vec3 GetVSLighting( mediump vec3 normal, highp vec3 pos );")
WriteLine(file,"uniform vec4 pointPos;")
WriteLine(file,"uniform vec3 scalevalue;")
writeline(file,"vec4 a = gl_Vertex;")
WriteLine(file,"void main()")
WriteLine(file,"{ ")
WriteLine(file,"    a.x+= scalevalue.x;")
WriteLine(file,"    a.y+= scalevalue.y;")
WriteLine(file,"    a.z+= scalevalue.z;")

WriteLine(file,"    a=clamp(a,0.0,1.0);//stops negative values")
WriteLine(file,"    uvVarying = uv * uvBounds0.xy + uvBounds0.zw;")
WriteLine(file,"    highp vec4 pos = agk_World * vec4(position,1.0)*a;")
WriteLine(file,"    mediump vec3 norm = normalize(agk_WorldNormal * normal);")
WriteLine(file,"    posVarying = pos.xyz;")
WriteLine(file,"    gl_Position = pos;")
WriteLine(file,"    normalVarying = norm;")
WriteLine(file,"    lightVarying = GetVSLighting( norm, posVarying );")
WriteLine(file,"}")
CloseFile(file)

//pixel shader
file = OpenToWrite("melt.ps")
WriteLine(file,"uniform sampler2D texture0;")
WriteLine(file,"varying highp vec3 posVarying;")
WriteLine(file,"varying mediump vec3 normalVarying;")
WriteLine(file,"varying mediump vec2 uvVarying;")
WriteLine(file,"varying mediump vec3 lightVarying;")
WriteLine(file,"mediump vec3 GetPSLighting( mediump vec3 normal, highp vec3 pos );")
WriteLine(file,"mediump vec3 ApplyFog( mediump vec3 color, highp vec3 pointPos );")
WriteLine(file,"uniform vec4 myColor;")
WriteLine(file,"uniform mediump vec3 agk_MeshDiffuse;")
WriteLine(file,"uniform vec3 pointPos;")

WriteLine(file,"void main()")
WriteLine(file,"{")
WriteLine(file,"mediump vec3 norm = normalize(normalVarying);")
WriteLine(file,"mediump vec3 light = lightVarying + GetPSLighting( norm, posVarying );")
WriteLine(file,"mediump vec3 color = texture2D(texture0, uvVarying).rgb * light;")
WriteLine(file,"color = ApplyFog( color, posVarying );")

WriteLine(file,"gl_FragColor = vec4(color,1.0);")
WriteLine(file,"}")

CloseFile(file)
endfunction

function CreateTexture()
	blue=MakeColor(0,0,200)
    SetClearColor(0,0,0)
    ClearScreen()
    //draw craft
    DrawBox(0,0,18,16,blue,blue,blue,blue,1)
    render()
    img = getImage(0,0,18,16)
    SetImageTransparentColor(img,0,0,0)
endfunction img

// set window properties
SetWindowTitle( "snow" )
SetWindowSize( 1024, 768, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 30, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 ) // since version 2.0.22 we can use nicer default fonts

createShaderFile()


houseSpr=createSprite(createHouse())
SetSpriteScale(houseSpr,25,25)
SetSpriteColor(houseSpr,200,0,0,255)
SetSpritePosition(houseSpr,200,500)

snowShader=1
snowSpr=CreateSprite(0)
SetSpriteSize(snowSpr,1024,768)
LoadSpriteShader(snowShader,"snow.ps")
SetSpriteShader( snowSpr,snowShader )
SetSpriteTransparency(snowSpr,2)
SetShaderConstantByName(snowShader,"resolution",1024,768 ,0,0)
do
	SetShaderConstantByName(snowShader,"time",timer(),0,0,0)

    sync()
loop
function createShaderFile()
fw=OpenToWrite("snow.ps")

WriteLine(fw,"#ifdef GL_ES")
WriteLine(fw,"precision mediump float;")
WriteLine(fw,"#endif")

WriteLine(fw,"#extension GL_OES_standard_derivatives : enable")

WriteLine(fw,"uniform float time;")
WriteLine(fw,"uniform vec2 resolution;")
//WriteLine(fw,"uniform sampler2D texture0;")

WriteLine(fw,"float snow(vec2 uv,float scale)")
WriteLine(fw,"{")
WriteLine(fw,"	float w=smoothstep(1.,0.,-uv.y*(scale/100.));if(w<.1)return 0.;")
WriteLine(fw,"	uv+=time/scale;uv.y+=time*2./scale;uv.x+=sin(uv.y+time*.5)/scale;")
WriteLine(fw,"	uv*=scale;vec2 s=floor(uv),f=fract(uv),p;float k=1.,d;")
WriteLine(fw,"	p=.5+.7*sin(11.*fract(sin((s+p+scale)*mat2(7,3,6,5))*5.))-f;d=length(p);k=min(d,k);")
WriteLine(fw,"	k=smoothstep(0.,k,sin(f.x+f.y)*0.01);")
WriteLine(fw,"    	return k*w;")
WriteLine(fw,"}")

WriteLine(fw,"void main(void){")
WriteLine(fw,"	vec2 uv=(gl_FragCoord.xy*2.-resolution.xy)/min(resolution.x,resolution.y); ")
WriteLine(fw,"	vec3 finalColor=vec3(0);")
WriteLine(fw,"	float c=smoothstep(1.0,0.3,clamp(uv.y*.0+.8,0.0,.75));")
WriteLine(fw,"	c+=snow(uv,20.)*.3;")
WriteLine(fw,"	c+=snow(uv,10.)*.5;")
WriteLine(fw,"	c+=snow(uv,7.5)*.8;")
WriteLine(fw,"	c+=snow(uv,5.);")
WriteLine(fw,"	c+=snow(uv,4.);")
WriteLine(fw,"	c+=snow(uv,3.);")
WriteLine(fw,"	c+=snow(uv,2.5);")
WriteLine(fw,"	if (c>=.5) { finalColor=(vec3(c));}")
WriteLine(fw,"	gl_FragColor = vec4(finalColor,1);")
WriteLine(fw,"}")
CloseFile(fw)
endfunction

function createHouse()
    local data as integer [215] = [
           0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,0,0,0,0,0,
           0,0,0,0,0,0,0,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0,
           0,0,0,0,0,0,0,0,0,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,
           0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,
           0,0,0,0,0,0,0,0,1,0,0,0,0,0,1,0,0,0,0,0,0,0,0,0,
           0,0,0,0,0,0,0,0,1,0,0,0,0,0,1,0,0,0,0,0,0,0,0,0,
           0,0,0,0,0,0,0,0,1,0,0,1,1,0,1,0,0,0,0,0,0,0,0,0,
           0,0,0,0,0,0,0,0,1,0,0,1,1,0,1,0,0,0,0,0,0,0,0,0,
           0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0]

    dataCount=0
     ClearScreen()
     for y = 0 to 8
        for x = 0 to 23
            if data[datacount]=1 then DrawLine(x,y,x,y,255,255,255)
            inc dataCount,1
        next x
    next y

    render()
    img = getImage(0,0,24,10)
    SetImageTransparentColor(img,0,0,0)
endfunction img

SetErrorMode(2)

// set window properties

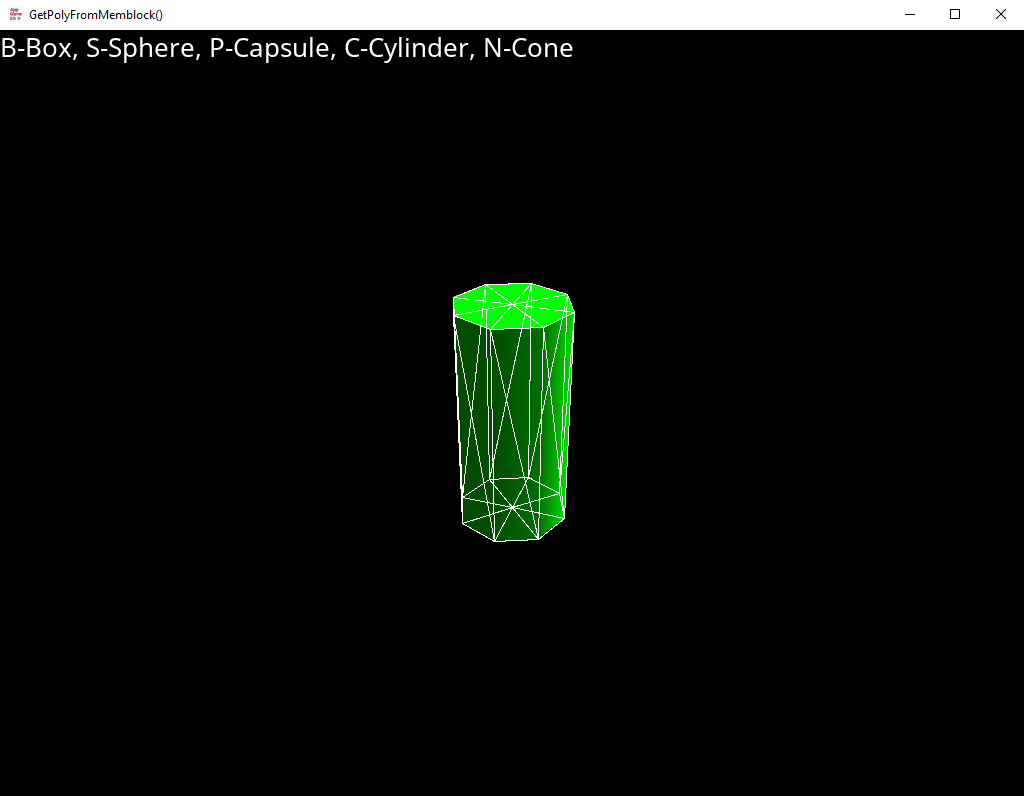

SetWindowTitle( "GetPolyFromMemblock()" )
SetWindowSize( 1024, 768, 0 )
SetWindowAllowResize( 1 ) // allow the user to resize the window

// set display properties
SetVirtualResolution( 1024, 768 ) // doesn't have to match the window
SetOrientationAllowed( 1, 1, 1, 1 ) // allow both portrait and landscape on mobile devices
SetSyncRate( 30, 0 ) // 30fps instead of 60 to save battery
SetScissor( 0,0,0,0 ) // use the maximum available screen space, no black borders
UseNewDefaultFonts( 1 )

cam = CreateObjectBox(1,1,1) : SetObjectVisible(cam, 0)
dolly = CreateObjectBox(1,1,1) : SetObjectVisible(dolly, 0)

SetObjectPosition(cam, 0, 0, -50)
FixObjectToObject(cam, dolly)

start as tPoint
move as tPoint

model = CreateObjectBox(10, 10, 10)
SetObjectColor(model, 0, 0xff, 0, 0xff)

do
	print("B-Box, S-Sphere, P-Capsule, C-Cylinder, N-Cone")

	if GetRawKeyPressed(asc("S"))
		DeleteObjectMemblock(model)
		model = CreateObjectSphere(16, 8, 8)
		SetObjectColor(model, 0, 0xff, 0, 0xff)
	endif

	if GetRawKeyPressed(asc("P"))
		DeleteObjectMemblock(model)
		model = CreateObjectCapsule(8, 16, 1)
		SetObjectColor(model, 0, 0xff, 0, 0xff)
	endif

	if GetRawKeyPressed(asc("B"))
		DeleteObjectMemblock(model)
		model = CreateObjectBox(10, 10, 10)
		SetObjectColor(model, 0, 0xff, 0, 0xff)
	endif

	if GetRawKeyPressed(asc("C"))
		DeleteObjectMemblock(model)
		model = CreateObjectCylinder(16, 8, 8)
		SetObjectColor(model, 0, 0xff, 0, 0xff)
	endif

	if GetRawKeyPressed(asc("N"))
		DeleteObjectMemblock(model)
		model = CreateObjectCone(16, 8, 8)
		SetObjectColor(model, 0, 0xff, 0, 0xff)
	endif

	if GetPointerPressed()
		start.x = GetPointerX()
		start.y = GetPointerY()
	endif

	if GetPointerState()
		move.x = GetPointerX() - start.x
		move.y = GetPointerY() - start.y
		RotateObjectLocalX(dolly, move.y)
		RotateObjectLocalY(dolly, move.x)
		start.x = GetPointerX()
		start.y = GetPointerY()
	endif

	SetCameraPosition(1, GetObjectWorldX(cam), GetObjectWorldY(cam), GetObjectWorldZ(cam))
	SetCameraLookAt(1,  GetObjectWorldX(dolly), GetObjectWorldY(dolly), GetObjectWorldZ(dolly), 0)

	DrawPolys(model)

    Sync()
loop


function	DrawPolys(id as integer)
	poly 		as tPoly
	polys		as integer
	i			as integer

	if GetMemblockExists(id) = 0
		CreateMemblockFromObjectMesh(id, id, 1)
	endif

	polys = GetPolysFromMemBlock(id)

	for i=0 to polys - 1
		poly = GetPolyFromMemblock(id, i)
		DrawWireLine(poly.vertex[0], poly.vertex[1])
		DrawWireLine(poly.vertex[1], poly.vertex[2])
		DrawWireLine(poly.vertex[2], poly.vertex[0])
	next

endfunction

function	DrawWireLine(f as tVertex, t as tVertex)
	sf	as tPoint
	st	as tPoint

	sf.x = GetScreenXFrom3D(f.pos.x, f.pos.y, f.pos.z)
	sf.y = GetScreenYFrom3D(f.pos.x, f.pos.y, f.pos.z)

	st.x = GetScreenXFrom3D(t.pos.x, t.pos.y, t.pos.z)
	st.y = GetScreenYFrom3D(t.pos.x, t.pos.y, t.pos.z)

	DrawLine(sf.x, sf.y, st.x, st.y, 0xff, 0xff, 0xff)

endfunction


/**************************************************************************************************
	3D memblock functions

	integer GetPolysFromMemBlock(id as integer)
	id = memblock id
	integer = The number of polys in this mesh

	tPoly = GetPolyFromMemblock(id as integer, n as integer)
	id = memblock id
	n = poly (from 0 through (GetPolysFromMemBlock() - 1))
	tPoly = tPoly.vertex is table containing information for the 3 vertex that make up the poly
		    pos - Position of vertex x, y, z
		    normal - Vertex normal x, y, z
		    uv - Vertex uv u, v
		    color - Color of vertex (if supplied)

 **************************************************************************************************/

type tUV
	u as float
	v as float
endtype

type tPoint
	x as float
	y as float
	z as float
endtype

type tVertex
	pos 	as tPoint
	normal 	as tPoint
	uv		as tUV
	color	as integer
endtype

type tPoly
	vertex	as tVertex[]
endtype

function	GetPolysFromMemBlock(id as integer)
	polys 	as integer
	indicies as integer

	indicies = GetMemblockInt(id, 4)

	if indicies = 0
		polys = GetMemblockInt(id, 0) / 3
	else
		polys = indicies / 3
	endif

endfunction polys

function	GetPolyFromMemblock(id as integer, n as integer)
	poly 		as tPoly
	point		as tPoint
	vertex		as tVertex
	verts		as integer
	indicies	as integer
	i			as integer
	v			as integer
	ioffset		as integer

	verts = GetMemblockInt(id, 0)
	indicies = GetMemblockInt(id, 4)

	SetErrorMode(0)

	if indicies = 0
		for i=(n * 3) to (n * 3)+2
			vertex.pos.x = GetMeshMemblockVertexX(id, i)
			vertex.pos.y = GetMeshMemblockVertexY(id, i)
			vertex.pos.z = GetMeshMemblockVertexZ(id, i)
			vertex.normal.x = GetMeshMemblockVertexNormalX(id, i)
			vertex.normal.y = GetMeshMemblockVertexNormalY(id, i)
			vertex.normal.z = GetMeshMemblockVertexNormalZ(id, i)
			vertex.uv.u = GetMeshMemblockVertexU(id, i)
			vertex.uv.v = GetMeshMemblockVertexV(id, i)
			vertex.color = MakeColor(GetMeshMemblockVertexRed(id, i), GetMeshMemblockVertexGreen(id, i), GetMeshMemblockVertexBlue(id, i), GetMeshMemblockVertexAlpha(id, i))
			poly.vertex.insert(vertex)
		next
	else
		ioffset = GetMemblockInt(id, 20) + (n * 12)
		for i=0 to 8 step 4
			v = GetMemblockInt(id, ioffset + i)
			vertex.pos.x = GetMeshMemblockVertexX(id, v)
			vertex.pos.y = GetMeshMemblockVertexY(id, v)
			vertex.pos.z = GetMeshMemblockVertexZ(id, v)
			vertex.normal.x = GetMeshMemblockVertexNormalX(id, v)
			vertex.normal.y = GetMeshMemblockVertexNormalY(id, v)
			vertex.normal.z = GetMeshMemblockVertexNormalZ(id, v)
			vertex.uv.u = GetMeshMemblockVertexU(id, v)
			vertex.uv.v = GetMeshMemblockVertexV(id, v)
			vertex.color = MakeColor(GetMeshMemblockVertexRed(id, v), GetMeshMemblockVertexGreen(id, v), GetMeshMemblockVertexBlue(id, v), GetMeshMemblockVertexAlpha(id, v))
			poly.vertex.insert(vertex)
		next
	endif

	SetErrorMode(2)

endfunction poly


function DeleteObjectMemblock(id as integer)
	if GetMemblockExists(id)
		DeleteMemblock(id)
	endif
	DeleteObject(id)
endfunction

SetWindowSize( 1024, 768, 0 )
SetVirtualResolution( 1024, 768 )


createShader()
loadimage(1,"timer.png")
CreateSprite(1,1)
SetSpriteSize(1,766,766)
SetSpritePosition(1,0,1)
LoadSpriteShader(1, "timer.ps")
SetSpriteShader( 1,1 )
//resetTimer()
SetShaderConstantByName(1,"iresolution",GetSpriteWidth(1),GetSpriteHeight(1),0,0)
do
    time#=Timer()
    SetShaderConstantByName(1,"itime",time#,0,0,0)
    print (time#)
    sync()

loop

function createShader()

file = OpenToWrite("timer.ps")

WriteLine(file,"#ifdef GL_ES")
WriteLine(file,"precision mediump float;")
WriteLine(file,"#endif")

WriteLine(file,"#extension GL_OES_standard_derivatives : enable")

WriteLine(file,"uniform float itime;")
WriteLine(file,"uniform vec2 iresolution;")
WriteLine(file,"uniform sampler2D texture0;")
WriteLine(file,"varying mediump vec2 uvVarying;")

WriteLine(file,"float angle(vec2 p0,vec2 p1) {")
WriteLine(file,"	if (p1.x < p0.x )")
WriteLine(file,"		return radians(180.0) + acos(dot(normalize(p0-p1),vec2(0.0,1.0)));")
WriteLine(file,"	return acos(dot(normalize(p1-p0),vec2(0.0,1.0)));")
WriteLine(file,"}")

WriteLine(file,"void main( void ) {")
WriteLine(file,"	vec2 mid = iresolution.xy / 2.0;")
WriteLine(file,"	float scale = mod(itime / 20.0 ,1.0);")
WriteLine(file,"	float thickness = mid.x;") //try uncommenting and commenting line below
//WriteLine(file,"	float thickness = 100.0;")


WriteLine(file,"	if (distance(mid,gl_FragCoord.xy)>min(iresolution.x,iresolution.y)/2.0 - thickness && distance(mid,gl_FragCoord.xy)<min(iresolution.x,iresolution.y)/2.0) {")
WriteLine(file,"		if (angle(mid,gl_FragCoord.xy)<=radians(360.0 * scale) )")
WriteLine(file,"			gl_FragColor = vec4(1.0,0.0,0.0,1.0)+texture2D(texture0, uvVarying).rgba;	// Circle Fill Color")
WriteLine(file,"		else")
//WriteLine(file,"			gl_FragColor = vec4(0.0,1.0,0.0,1.0);	// Cirlce Background Color")
WriteLine(file,"			gl_FragColor = vec4(0.0,1.0,0.0,1.0)+texture2D(texture0, uvVarying).rgba;")
WriteLine(file,"	}")
WriteLine(file,"	else")
//WriteLine(file,"		gl_FragColor = vec4(0.0,0.0,0.0,1.0);	// Background Color")
WriteLine(file,"		gl_FragColor = texture2D(texture0, uvVarying).rgba;")
WriteLine(file,"}")
CloseFile(file)
endfunction

SetWindowSize(800, 800,0)
SetVirtualResolution(800, 800)
spr=createSprite(0)
SetSpriteSize(spr,800,800)
SetSpriteColor(spr,0,0,0,255)
SetSpriteDepth(spr,0)
SetSpriteTransparency( spr,1 )

text=CreateText("Matrix")
SetTextPosition(text,200,300)
SetTextSize(text,100)
SetTextDepth(text,10)
createShader()
shader=LoadSpriteShader("matrix.ps")
SetSpriteShader(spr,shader)
SetShaderConstantByName(shader,"resolution",800,800,0.0,0.0)
do
	time#=Timer()
	SetShaderConstantByName(shader,"time",time#,time#,time#,0.2)
	sync()
loop

function createShader()
file = OpenToWrite("matrix.ps")
WriteLine(file,"#ifdef GL_ES")
WriteLine(file,"precision mediump float;")
WriteLine(file,"#endif")

WriteLine(file,"uniform float time;")
//WriteLine(file,"uniform vec2 mouse;")
WriteLine(file,"uniform vec2 resolution;")


WriteLine(file,"void main( void ) ")
WriteLine(file,"{")

WriteLine(file,"	vec2 uv = ( gl_FragCoord.xy / resolution.xy ) * 2.0 - 1.0;")
WriteLine(file,"	uv.x *= resolution.x/resolution.y;")

WriteLine(file,"	vec2 px = vec2(gl_FragCoord.x, gl_FragCoord.y);")
WriteLine(file,"	px.x+=sin(time+px.y*0.01)*0.07;")
	///px *= 4.;


WriteLine(file,"	vec3 finalColor = vec3( 0.1, 0.2, 0.3 );")

WriteLine(file,"	float a = 0.;//atan( uv.y / uv.x );")
WriteLine(file,"	float r = -1.5 + length( uv );")


WriteLine(file,"	float timeT = .1;//sin(time) * 0.5 + 0.5;")
WriteLine(file,"	float move = .6 + time;")

WriteLine(file,"     	float t = .7 + .1 * sin(move * 1.);")

WriteLine(file,"     	finalColor += vec3( 8.0 * t, 4.0 * t, 2.0 * t );")

WriteLine(file,"     	finalColor *= .5 * (1.-r);")

WriteLine(file,"	float g = -mod( px.y + time, cos( px.x ) + 0.004 ) * .5;")
WriteLine(file,"	finalColor *= vec3( (g/2.)*(resolution.y-gl_FragCoord.y)/resolution.y, g/2., g );")
WriteLine(file,"	gl_FragColor = vec4( 0.0,0.0,0.0,0.0);")
WriteLine(file,"	if (finalColor.x > .1 || finalColor.y > .1 || finalColor.z > .1 ){")
WriteLine(file,"		gl_FragColor = vec4( finalColor, 1.0 );")

WriteLine(file,"	}")
WriteLine(file,"}")
CloseFile(file)
endfunction
